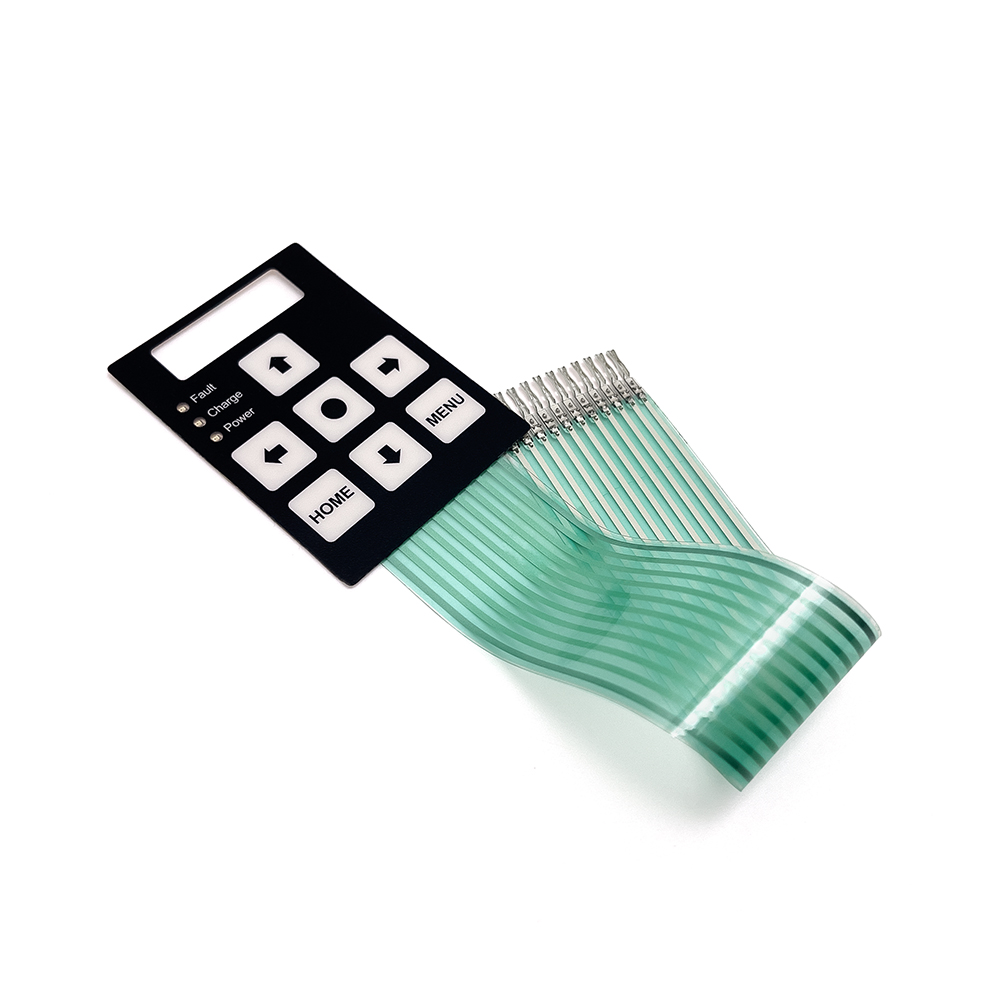

Membrane switches are a type of multi-layer electronic switch integrating key functions, indicator components and instrument panels. As a set of tactile switches, they are responsible for transmitting operational instructions to the rear circuits of the whole equipment. The development of membrane switches can be traced back to the 1970s. With the advancement of flexible printed circuit technology, membrane switches have gradually replaced traditional mechanical switches and become the mainstream interactive method for modern electronic devices.

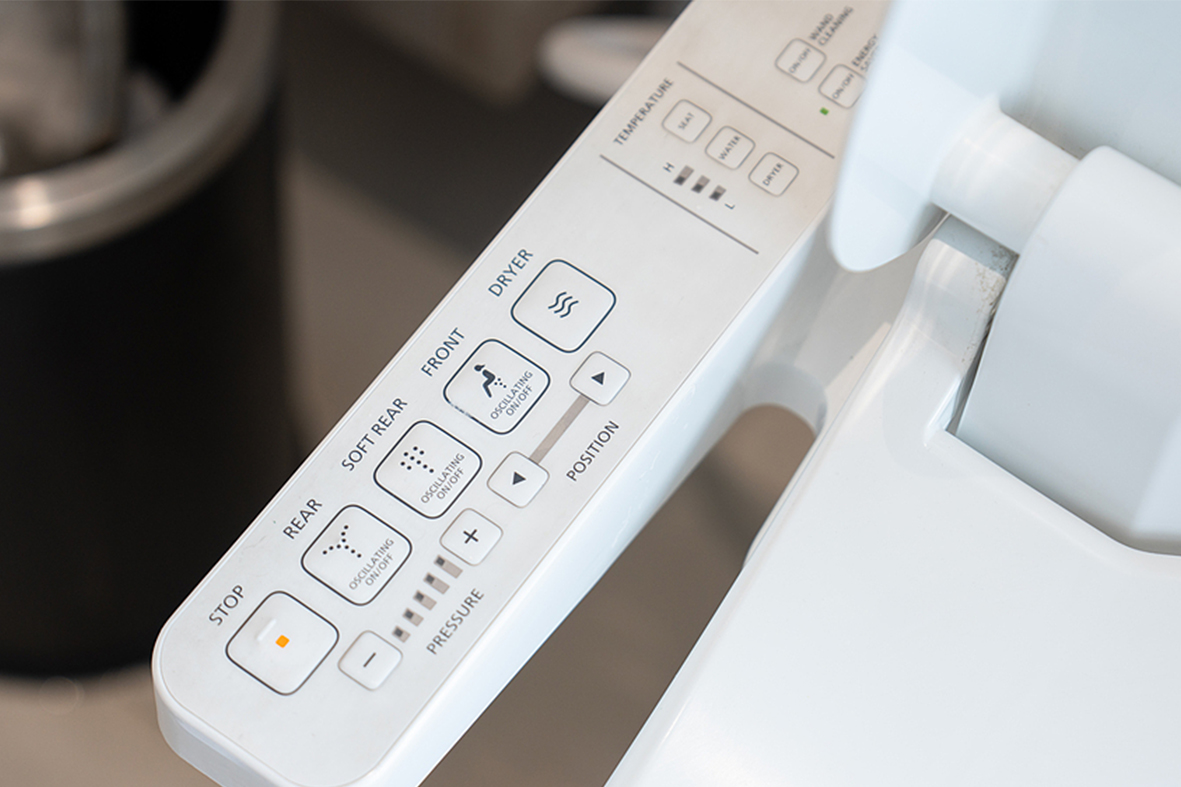

These switches are fabricated using screen printing technology to create conductive circuits on flexible transparent resin films, combined with elastic insulating layers. They offer advantages such as simple structure, aesthetic appeal, strong environmental resistance, and long service life. Membrane switches are widely applied in smart consumer electronics, home appliances, industrial controls, medical devices, and other fields, driving the trend toward lighter, thinner, more compact, and highly intelligent electronic equipment.

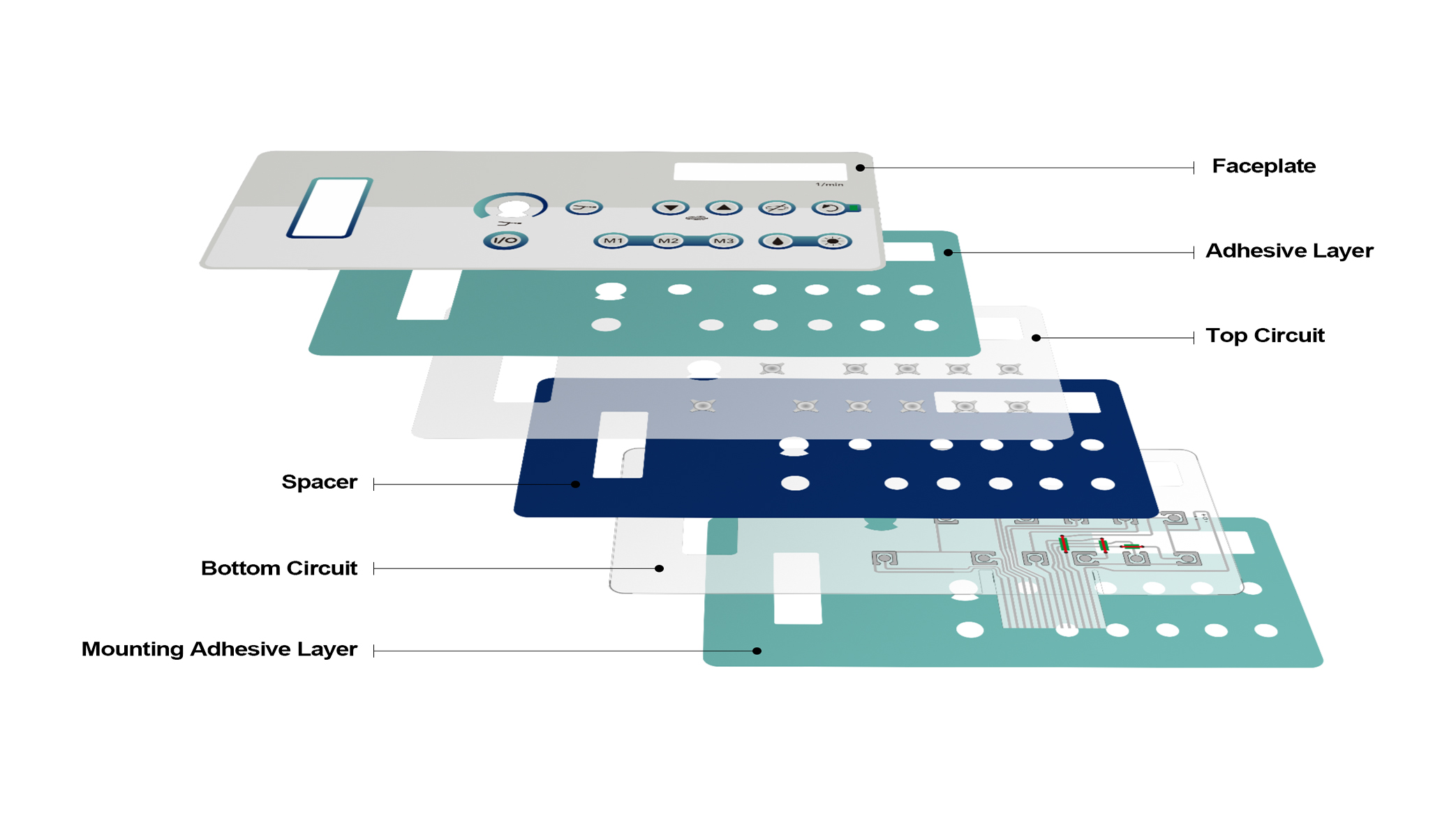

Function: Acts as the user interaction interface, undertaking identification and decorative design, key operation functions, and protecting the internal circuitry.
Common Materials: PET (Polyester Film), PC (Polycarbonate), or PVC (Polyvinyl Chloride) film. The standard thickness ranges from 0.125mm ~ 0.25mm, featuring high transparency, strong ink adhesion, good flexibility and bending resistance.
Surface Finish: Available in glossy or matte finish with a pencil hardness rating typically reaching 2B~2H. It offers excellent scratch and wear resistance, which effectively extends the product service life.
Common Processes: Screen printing technology is adopted for the precise printing of patterns, text and symbols. The key areas are conventionally designed with raised dome structures to enhance pressing tactility and operational feedback, while non-functional areas feature a flat design to optimize the overall aesthetic appearance.
Function: The core connection layer between the panel layer and the lower circuit is used to achieve a strong fit and structural integration of the two-layer structure.
Material Specifications: Industrial-grade double-sided adhesive tape with a standard thickness ranging from 0.13mm ~ 0.2 mm.
Function: Carries the upper electrode contacts of the keys, providing the core conductive contact terminals for circuit on-off control.
Material Specifications: PET film with a standard thickness ranging from 0.075mm ~ 0.125 mm.
Features: Fixed metal domes or silicone gaskets are used to ensure precise key actuation. Alternatively, conductive ink can be printed to form conductive circuits for functional realization. When metal domes are fitted to the switch, this layer serves to fix the domes in position.
Conductive Materials: Silver paste, carbon paste, copper foil, etc. For non-printed versions, stainless steel domes, copper-plated domes, nickel-plated domes or gold-plated domes are generally adopted.
Function: The core insulating separation layer of the membrane switch. It maintains effective isolation between the upper and lower circuit layers under normal conditions, ensuring electrode contacts remain in an open and insulated state and guaranteeing circuit stability when the switch is not in operation.
Material Specifications: Industrial-grade double-sided adhesive tape with a standard thickness ranging from 0.15mm ~ 0.25 mm.
Function: Acts as the carrier layer for lower contacts and functional circuits. It mates precisely with the upper circuit layer to form electrode contacts and conduct the circuit loop when pressed.
Material Specifications: PET flexible circuit substrate with a standard thickness ranging from 0.075mm ~ 0.125 mm, with conductive circuits formed by printed conductive ink on the surface. Alternative materials such as FPC (Flexible Printed Circuit) or PCBA (Printed Circuit Board Assembly) are also applicable.
Conductive Materials: Silver Paste, Carbon Paste, Copper Foil, etc.
Function: Achieves fixed bonding between the membrane switch and the equipment housing, ensuring structural stability and lamination precision after assembly.
Materials: Commonly use double-sided adhesive tape such as 3M, CROWN, or Tesa and other series. The suitable model is matched according to the material characteristics of the equipment housing to maximize the bonding strength between the product and the housing.
Structural Features: Designed with overall thickness ranging from 0.15 mm ~ 0.3 mm and excellent flexibility. The contact gap is controlled by the thickness of the spacer layer, which realizes the vertical bounce stroke and actuation feedback effect of the switch.

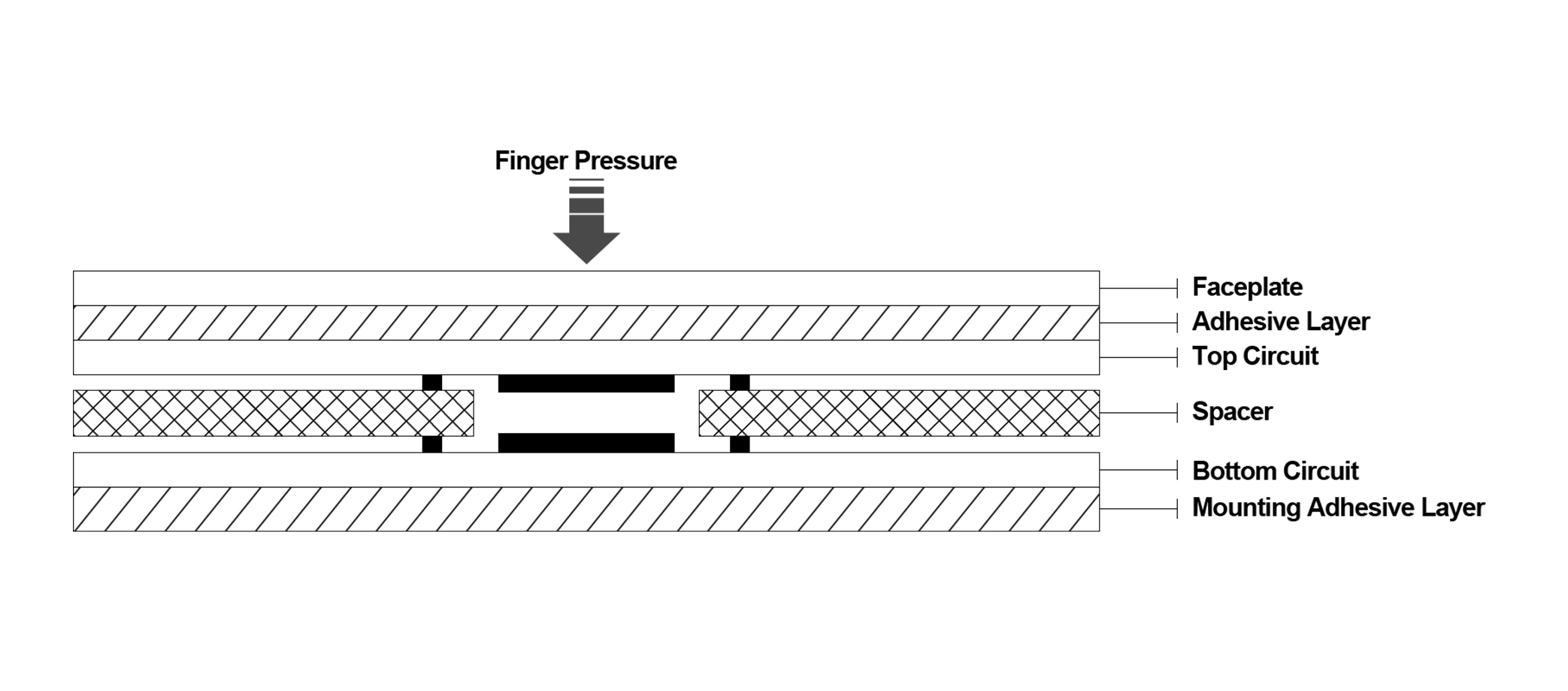

Adopting a vertical contact structure design, the upper and lower circuit contacts are physically separated by the spacer layer under normal conditions, keeping the circuit insulated and open with no signal output. When the user presses a key on the top faceplate, the upper circuit contact deforms downward accordingly, passes through the hole in the spacer layer and makes precise contact with the lower circuit contact to achieve circuit conduction, with the signal transmitted to the rear circuit via the connector. When the user releases the key, the restoring force of the substrate’s elastic material drives the upper circuit contact to reset quickly, and the separation of the upper and lower contacts cuts off the circuit again, completing a single signal input.
This vertical contact design can effectively reduce the micro-displacement of the contacts. Relying on the excellent elastic recovery performance of the materials, the switch can achieve a mechanical service life of over one million presses, ensuring the long-term stable and reliable operation of the product.
Features: Excellent temperature resistance, high mechanical strength, high toughness, and chemical corrosion resistance.
Common Surfaces: Glossy, textured (matt).
Advantages: Exceptional all-round performance, comfortable pressing feel and an extended service life for keys; outstanding toughness among thermoplastic materials, along with excellent chemical corrosion resistance and superior insulating properties.

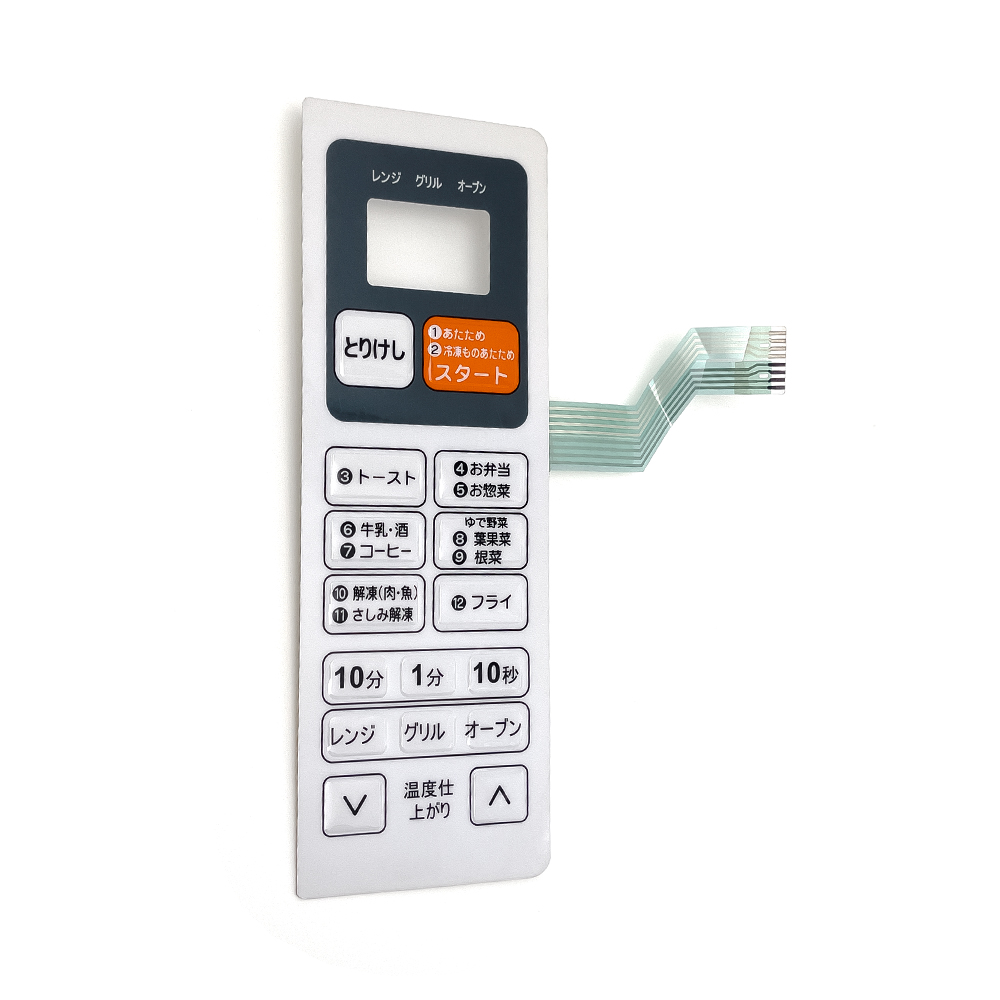

Product Application: Suitable for home appliance panels, instrument panels and medical equipment panels that require high performance in special environments.
Features: Impact resistance, wide temperature tolerance, high transparency.
Common Surfaces: High transparency, textured (matt).
Advantages: Excellent impact resistance and strong process adaptability in processing; good high and low temperature adaptability; inherent self-extinguishing and excellent flame-retardant properties; stable UV resistance and outstanding electrical insulation performance.
Product Application: Home appliance panels, medical equipment panels, control panels for outdoor industrial electronic complete machine products.
Features: Flexible PVC features relatively high brittleness and low tensile strength; rigid PVC boasts good ductility and easy moldability; the material is susceptible to low temperatures and UV exposure, with moderate durability overall.
Common Surfaces: Standard glossy, matt surface.
Advantages: Easy to process and cost-effective, suitable for budget display panels.
Product Application: Signage panels, public identification signs, and low-cost basic panels.

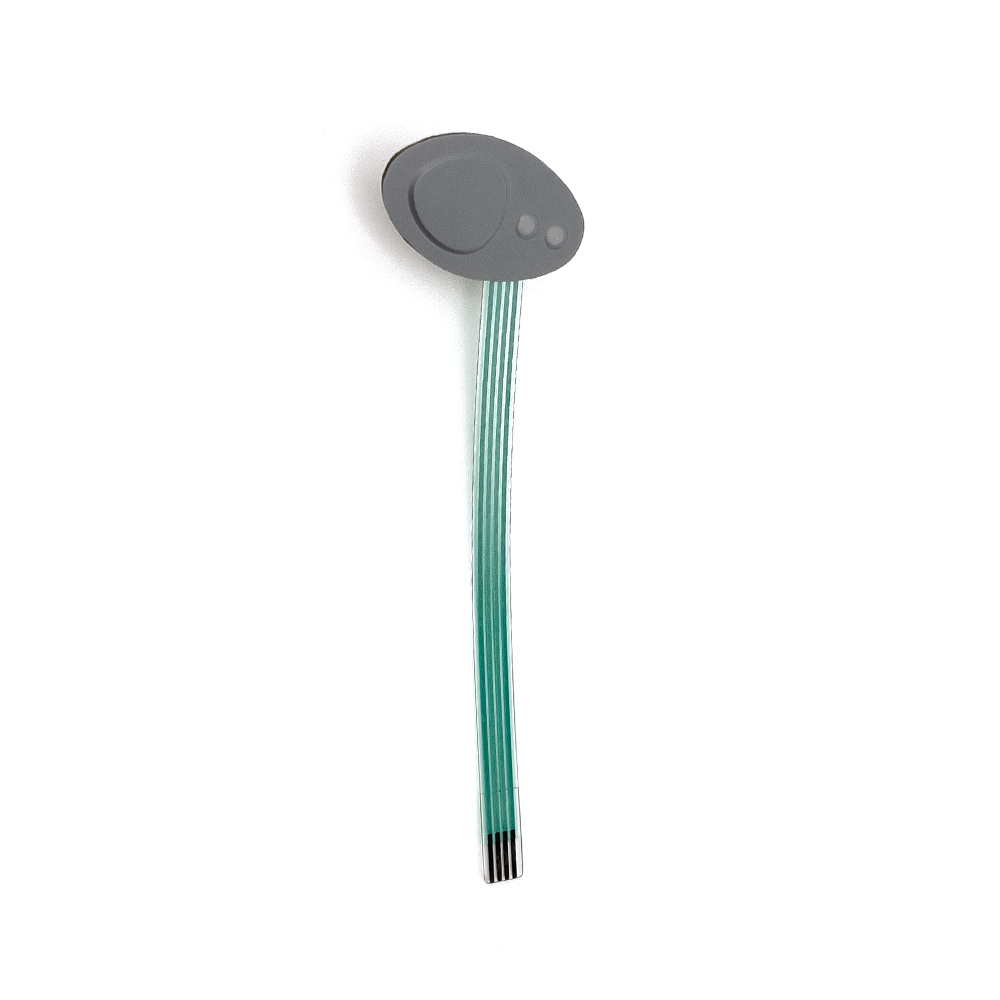

Flat Type
Designed without tactile feedback, the panel features a completely flat configuration. This design effectively reduces surface wear, inhibits stain accumulation, and enhances weather resistance and service life. This type is suitable for applications with stringent requirements for cleanliness, durability, and a minimalist appearance. Typical use cases include medical instruments, office automation equipment and other high-precision, high-cleanliness operating environments.

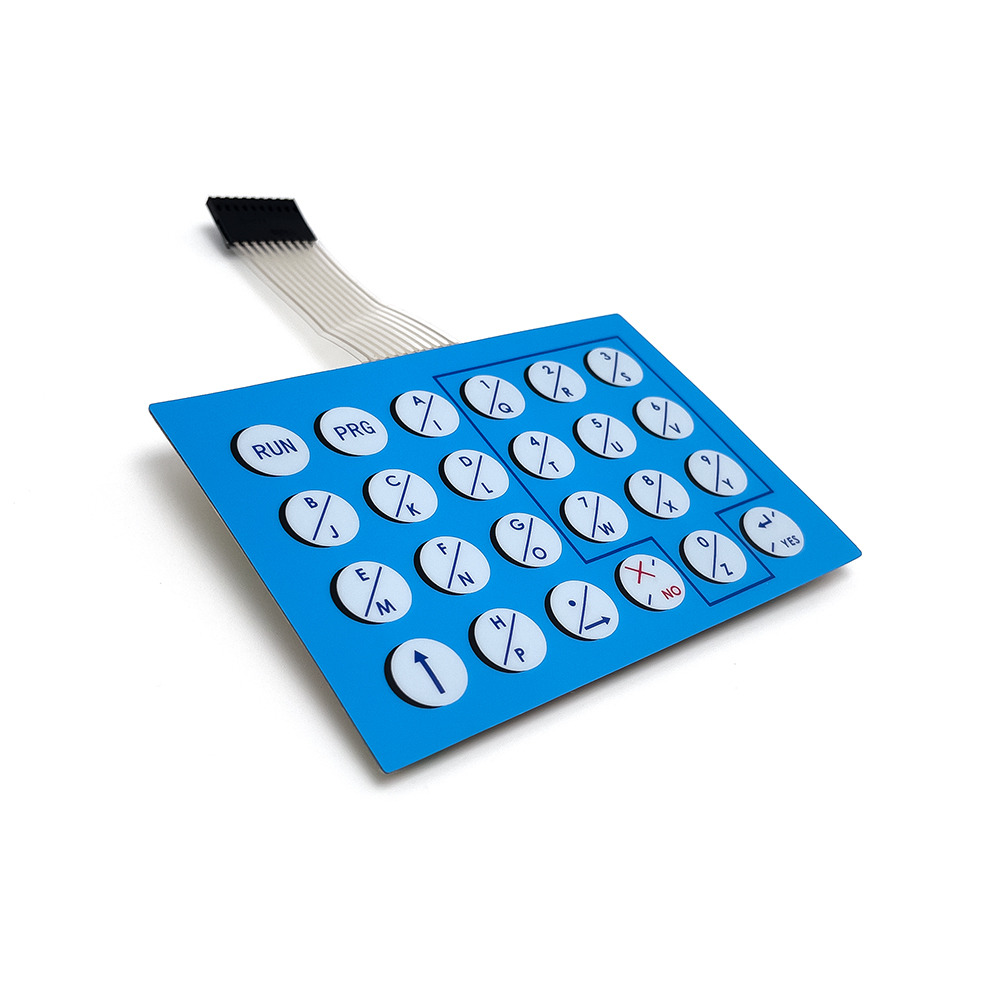

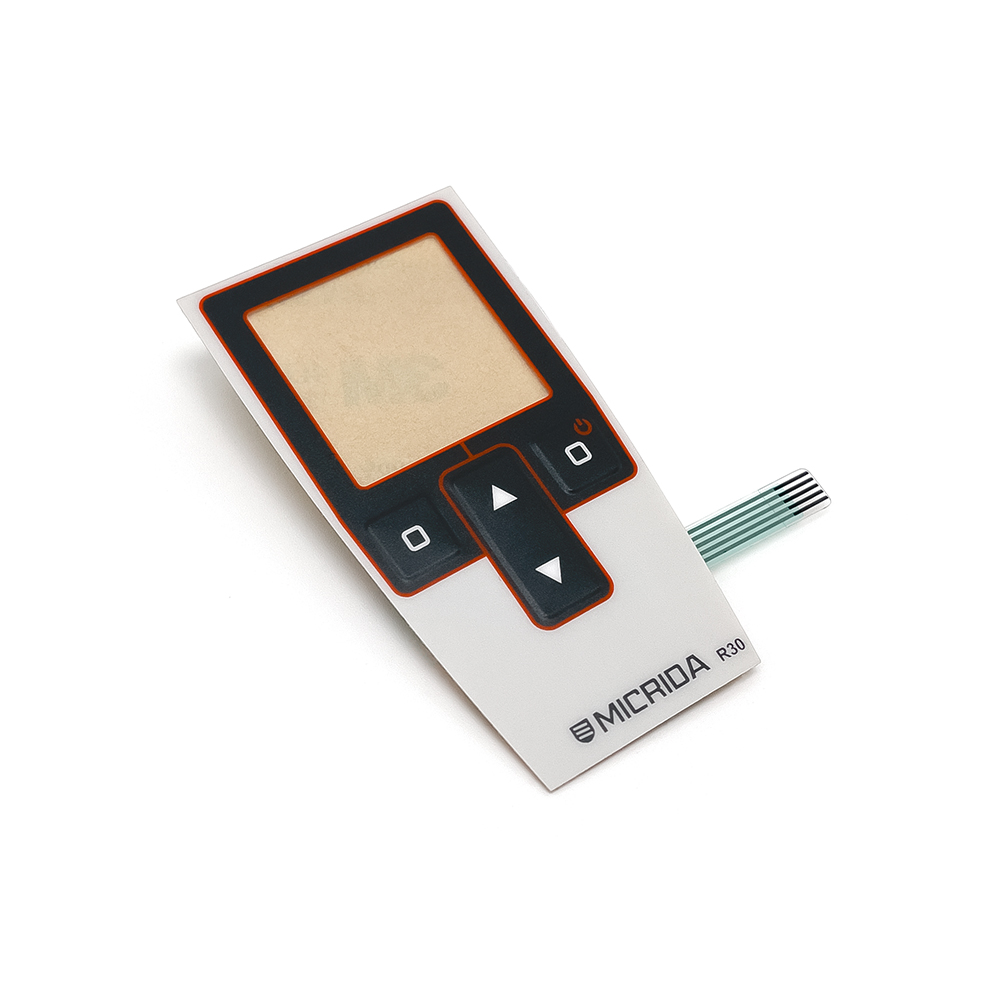

Raised Structure Type
This type also lacks tactile feedback. Characters, patterns, key areas and edge contours on the panel are designed as raised structures with specific shapes and thicknesses. This design preserves functionality while giving the panel a distinct three-dimensional visual hierarchy. Additionally, the raised portions act as effective physical tactile indicators, offering clear tactile guidance for user operations. This type is commonly used in function key panels of home blood pressure monitors and glucose meters, where the raised markings are clear and easy to identify, aligning with the operating habits of middle-aged and elderly users. It is also applied in simple control areas of gym equipment like treadmills and elliptical machines, where tactile guidance supports quick operations during exercise.

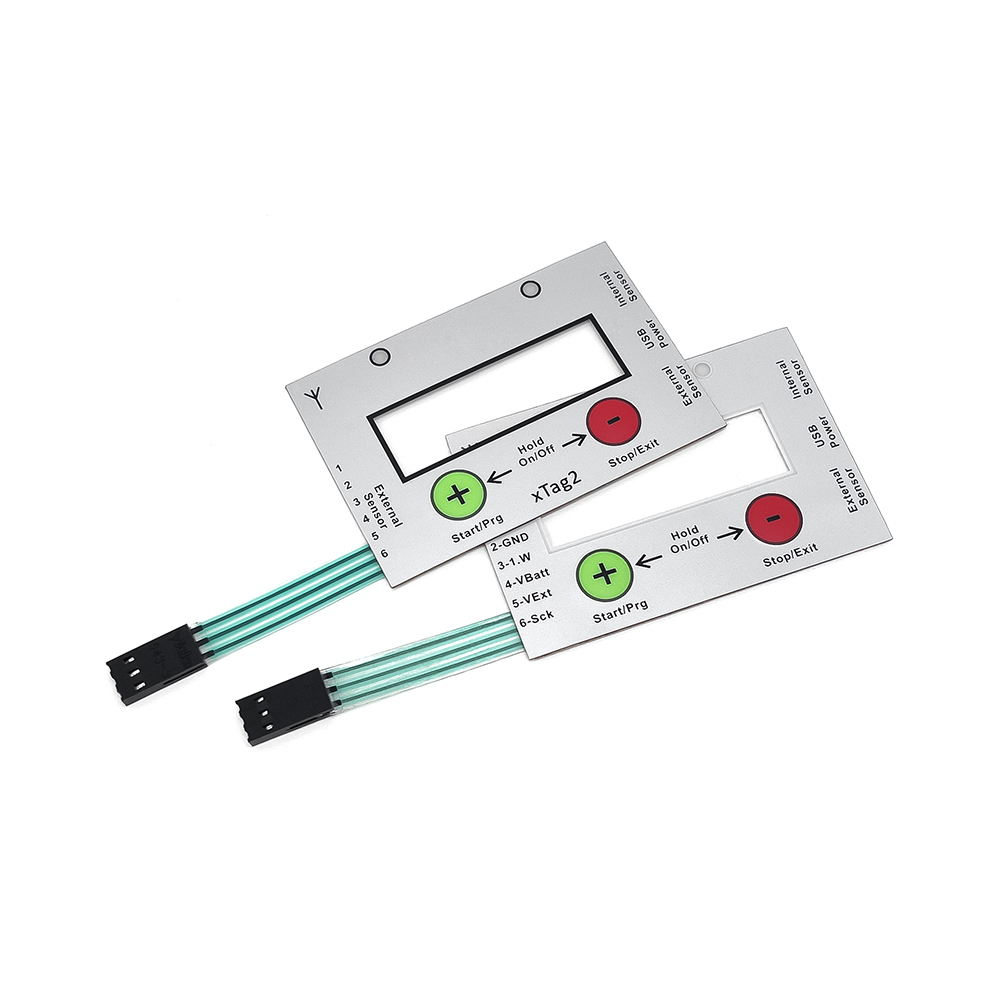

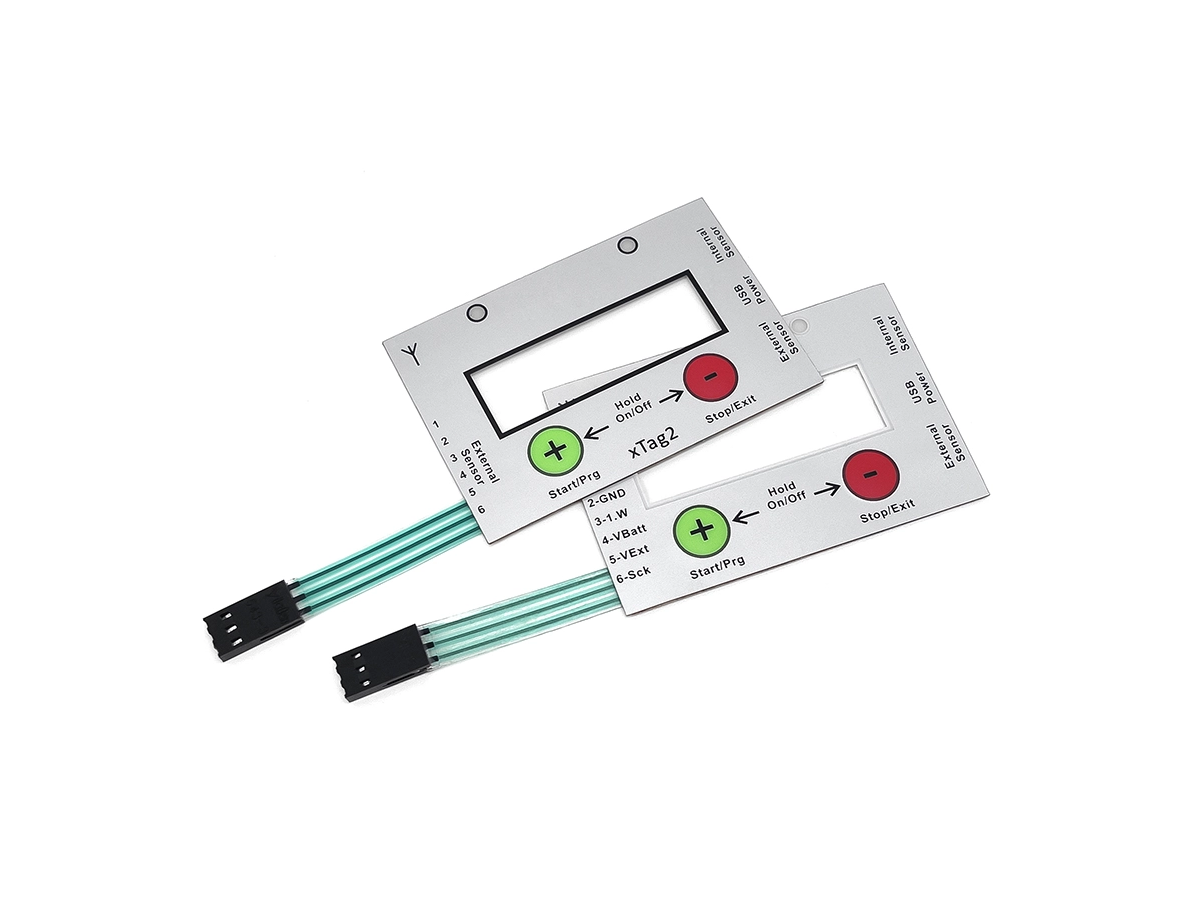

Flat Type
This type integrates metal domes or silicone pads as tactile feedback components between the inner layer of the panel and the circuit module, providing users with distinct and stable tactile feedback during operation. The panel surface features a seamless flat design that balances minimalist aesthetics and easy cleaning, while ensuring precise operational responsiveness. It is ideal for scenarios requiring high sensitivity to operational feedback, real-time response, and strict panel cleanliness standards. Typical applications include industrial automation control equipment, precision instrument operation terminals and similar environments.

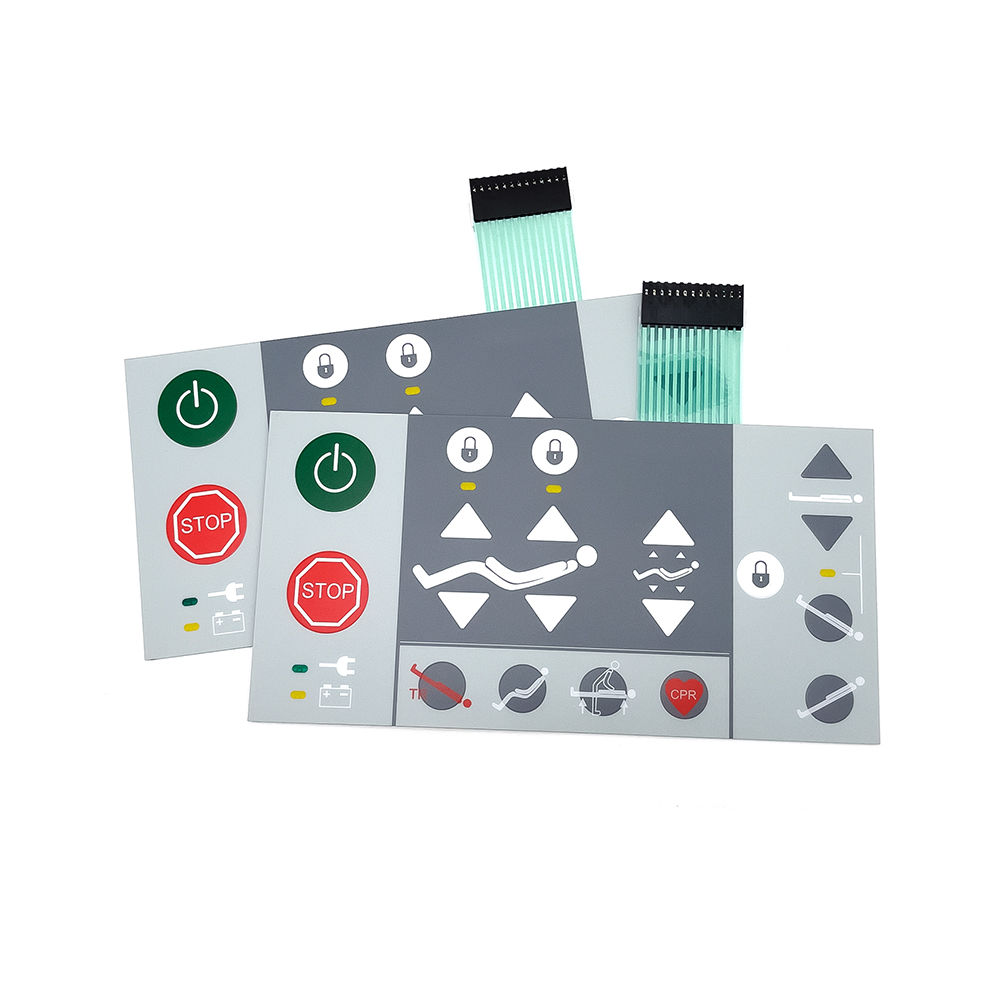

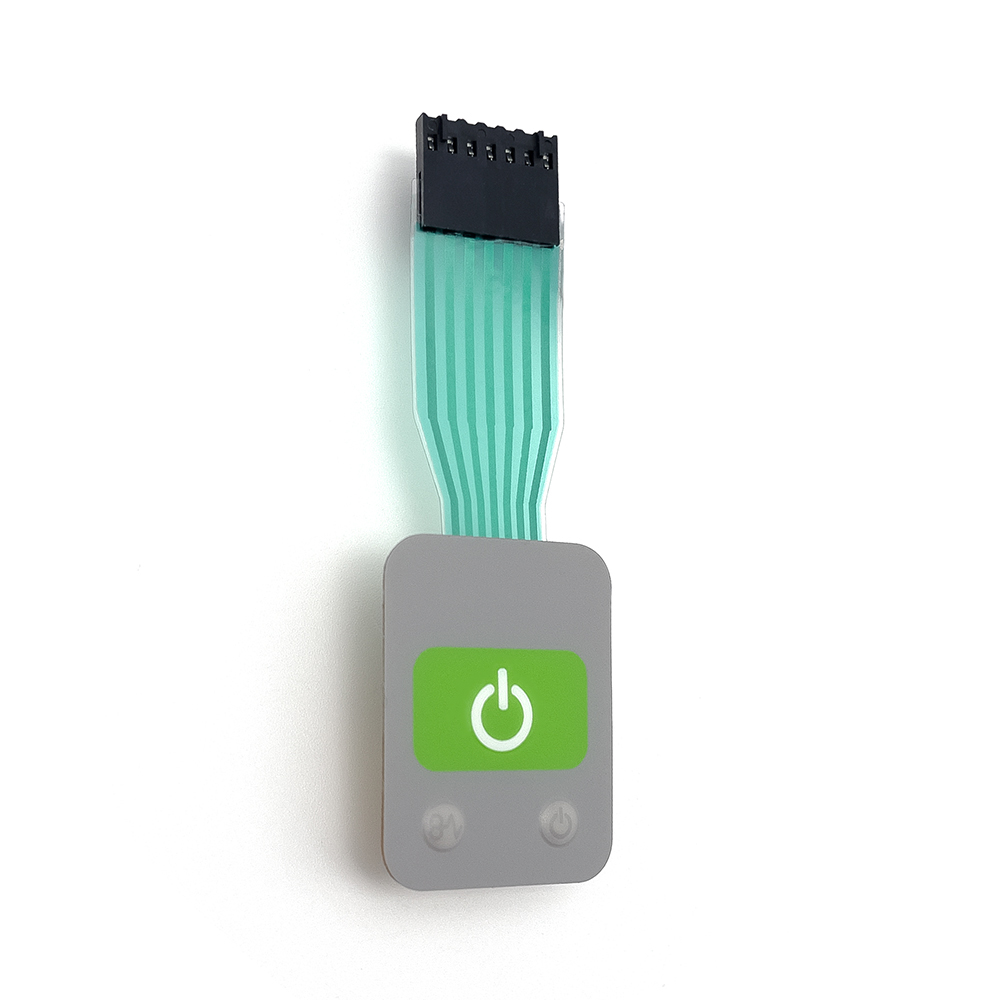

Raised Structure Type
This design combines tactile feedback with an integrated raised structure. Metal domes or silicone pads are embedded between the inner layer of the panel and the circuit module as core tactile feedback units, effectively enhancing the clarity and precision of operational commands. Structurally, the functional key areas, character markings, patterns, and edge contours on the panel surface are formed using a customized raised molding process. Boasting stable tactile feedback performance and a customizable 3D appearance, this type of membrane switch is widely used in high-end consumer electronics, smart wearable devices, and other applications that demand exceptional interactive experience and high aesthetic quality.

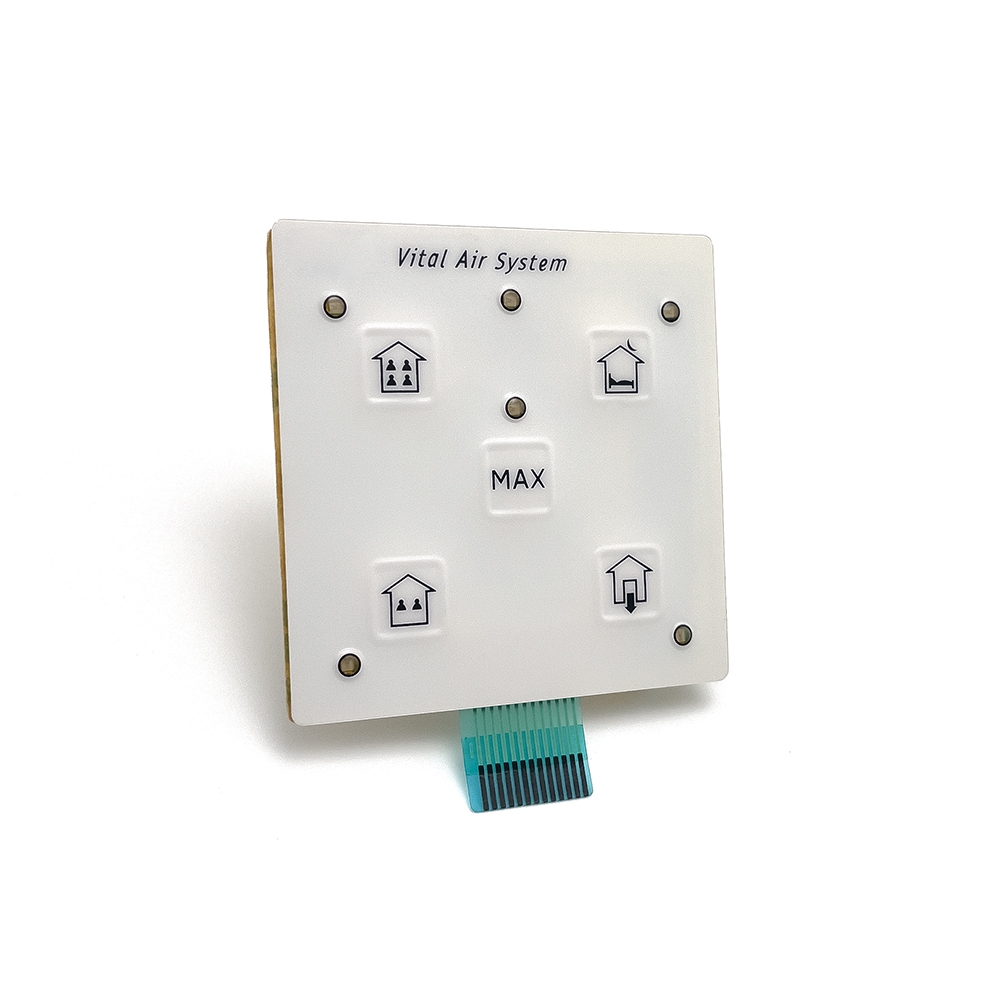

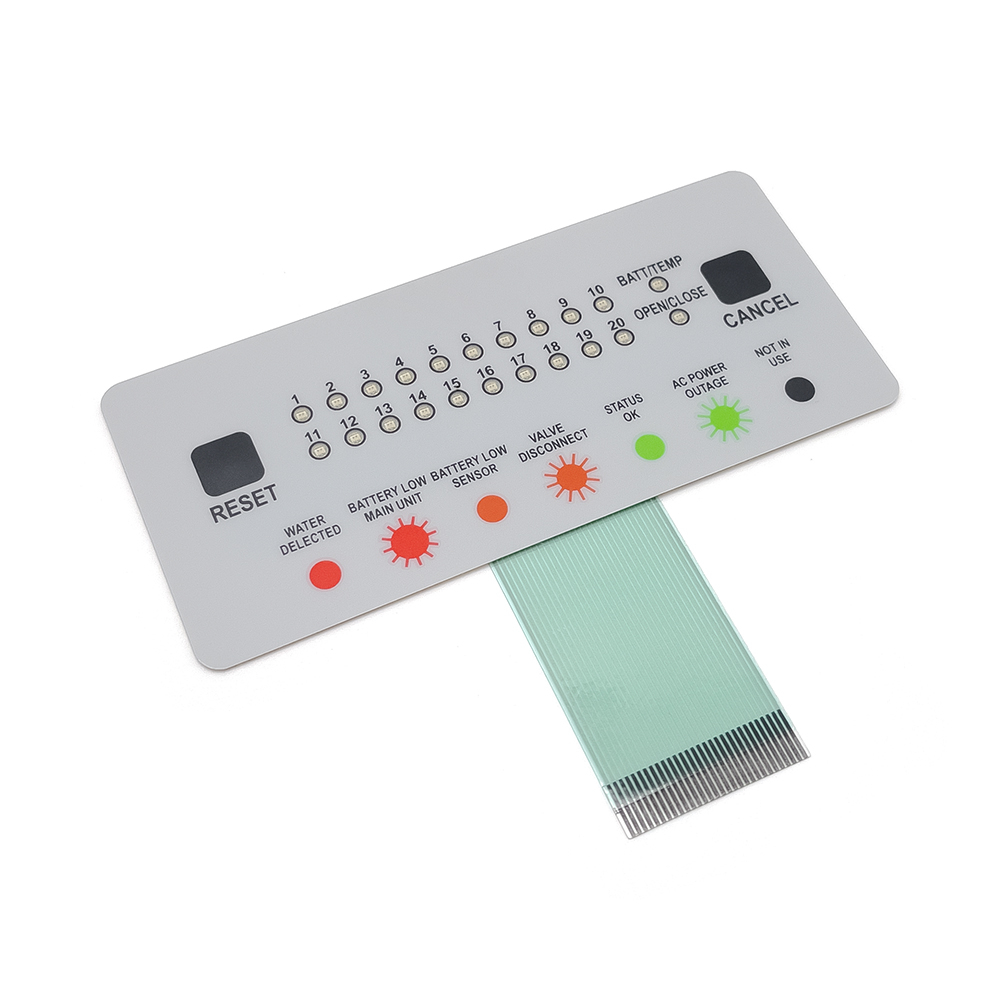

Flat Type
The flat LED illuminated membrane switch is a human-machine interaction component that integrates a planar structural design with uniform lighting functionality. This product incorporates LED lighting elements within the membrane switch while maintaining a completely flat configuration with no raised structures on the panel surface, offering dual advantages of excellent adaptability and easy operational. This type of product is widely used in application scenarios such as instrumentation operation panels, backlit keyboards, and medical equipment control interfaces that require strict requirements for luminous uniformity, compactness and ease of maintenance.
Raised Structure Type
This is an operational interface component that integrates light display functionality with three-dimensional tactile interaction. Based on the integration of LED lighting components, the product employs a customized raised molding process for character markings, functional patterns, key areas, edge contours, and designated lighting areas on the panel surface. This type of product is suitable for application scenarios such as control panels for night operation equipment, fashionable consumer electronics and smart wearable device interfaces. Which have dual requirements for visual recognition and tactile interaction experience.
As an electronic control assembly with highly integrated functional and decorative features, membrane switches continue to drive innovation in electronic devices through their structural advantages, long service life and strong adaptability. With advancements in fields such as 3C electronics, smart home systems and automotive electronics, membrane switches are evolving toward miniaturization, intelligence and multifunctionality, boasting broad prospects for future applications.
