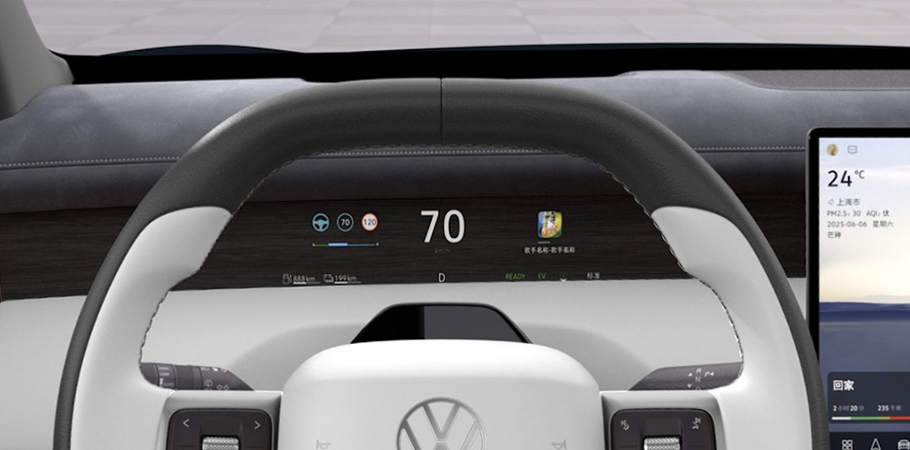

With the rapid development of intelligent cockpits, car interiors are no longer limited to traditional mechanical buttons and rigid panels. Designs with no physical buttons, curved integrated panels, hidden touch interactions and synced ambient lighting have become mainstream for premium car interiors. As a key carrier for HMI (Human-Machine Interface) applications, automotive smart surfaces combine decorative aesthetics, responsive touch sensing, intelligent interaction and long-lasting durability, creating a brand-new human-machine interaction experience.

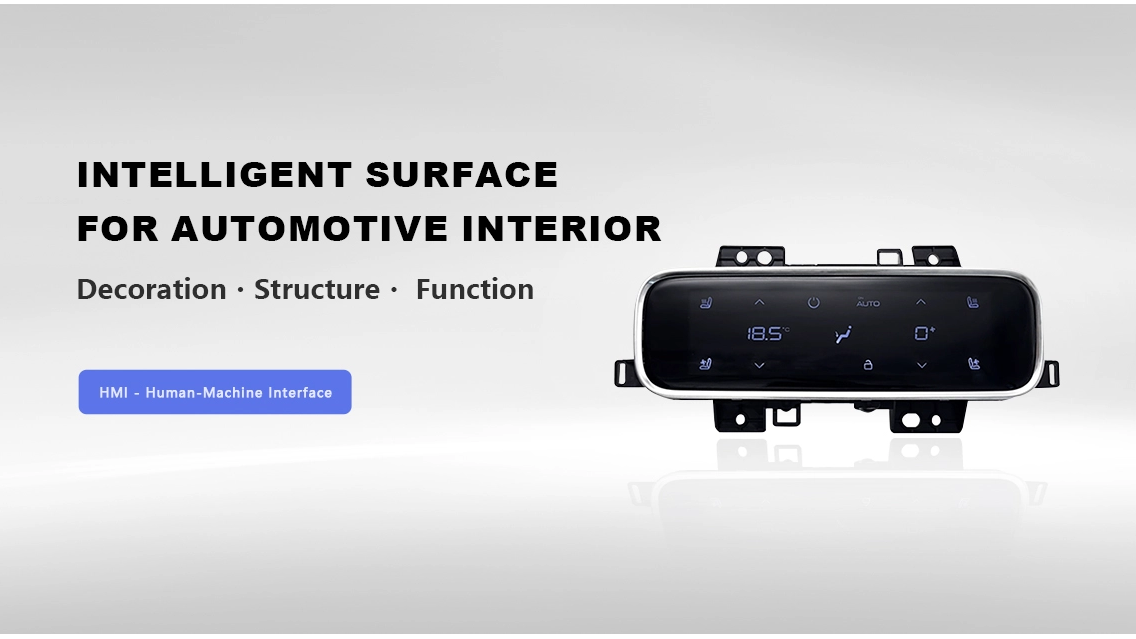

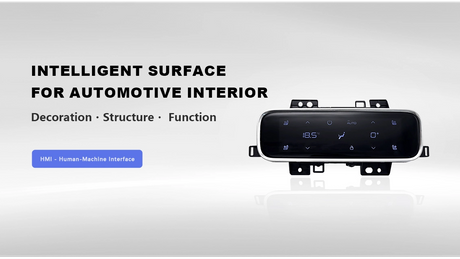

Intelligent Surface is an interactive interface that combines decoration, control and display functions.This solution is enabled by integrated IML (In-mold Labeling) processes, such as IML+Touch Sensor, IMC and IME. It has gradually replaced traditional physical buttons in vehicles, forming a minimalist touch decorative panel with integrated multiple functions.
The exterior parts adopt the IML (In-mold Labeling) process, with the backside lamination of the circuit film to enable touch functionality.
The IMC process uses screen printing to apply conductive circuits, then proceeds with 3D high-pressure forming and injection molding. The touch layer sits between the IML film and the injection molded layer.
IME process is a comprehensive intelligent surface process that combines circuit printing, component mounting, forming, cutting and injection molding.
| Comparison Dimensions | IML+Touch Sensor | IMC | IME |
|---|---|---|---|
| Structural Integration Level | Medium / Multi-layer Lamination | Relatively High / Touch Embedded Inside | High / Embedded Electronic Components |
| Production Process | Multi-stage manufacturing process / Post-stage lamination | Embedded touch circuits / No additional lamination required | Nearly fully integrated / Reduced subsequent processes |
| Process Maturity | Mature / Widely applied | Gradually maturing / With mass production cases available | Cutting-edge technology / Under low-volume application |
| Mass Production Yield | High | Medium - High | Medium / Based on material and process conditions |
| Core Product Functions | Basic touch control / Backlight display | Touch control / Dynamic lighting effects | Multi-functional integration / Sensing and feedback |

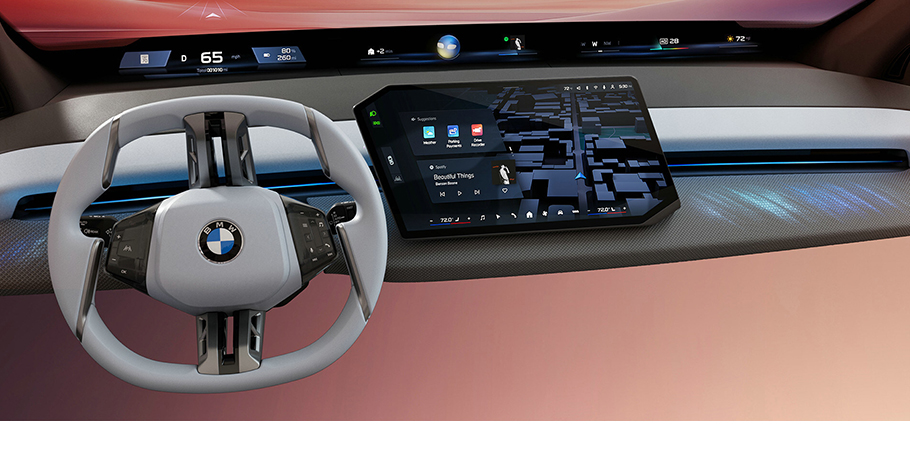

| Application Scenarios | Center Console Trim Panel / Door & Window Control Panel | Ambient Light Touch Area | Smart Steering Wheel / Full-Functional Smart Surface (Including sensing & feedback) |
Modern automotive intelligent cockpit interiors are evolving toward higher integration, personalization and sustainability. In the future, technologies including AI, AR-HUD and intelligent voice will be deeply integrated to deliver an intelligent multi-modal human-vehicle interaction experience.
New materials and process technologies, such as flexible foldable structures, light-transmitting color-changing films and self-healing coatings will continue to expand the boundaries of automotive interior design. Meanwhile, as IMC and IME processes mature, intelligent surfaces will gradually spread from premium vehicles to family cars, becoming standard equipment for next-generation intelligent cockpits.
